THE ILLUMINATING FABRIC

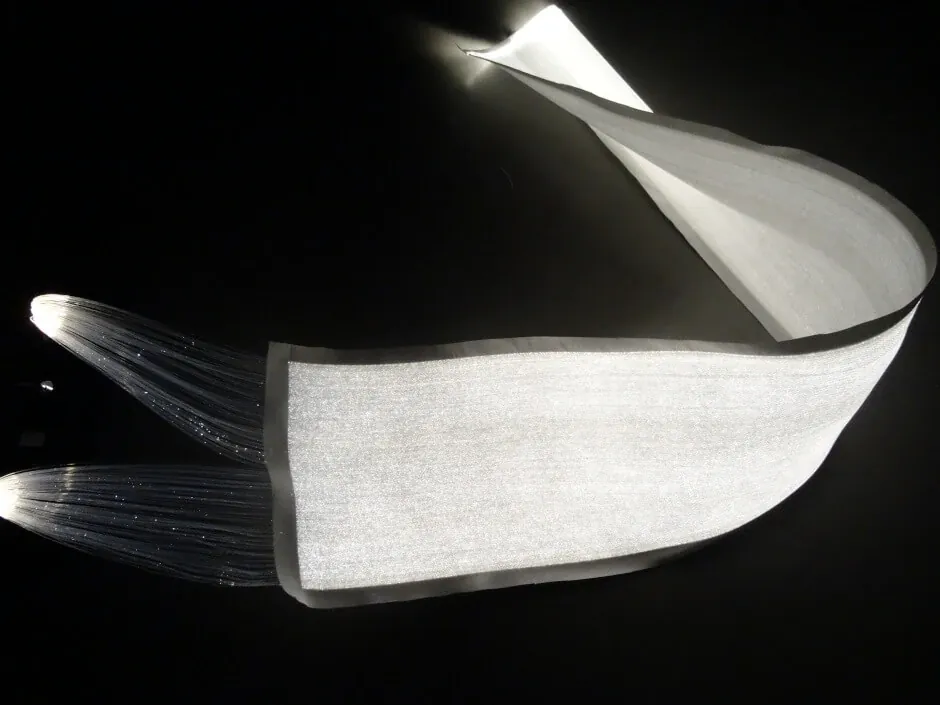

Kanvaslight revolutionizes lighting by using optical fibers in a way that has never been seen before. By weaving the optical fibers into a fabric, Kanvaslight is able to turn any textile structure into a beautiful lighting piece. Kanvaslight can be integrated into any textile or composite and is designed to survive any environment. Kanvaslight can be integrated with:
Contact us for integration recommendations.

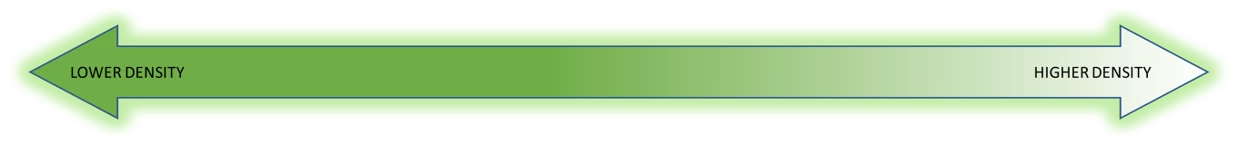

This fabric has a lower density of optical fibers. This option is perfect for aesthetic lighting. Perfect as a design tool, for accent lighting or retro-lighting.
This fabric has a higher density of optical fibers built into the fabric. This allows for a greater amount of light to be emitted from the fabric.
| Part # - SKU | Width B (Inch) | Length A (Feet) | Extension C (Inch) | Luminance (cd/m²) | Light Injection |
|---|---|---|---|---|---|
| 1-4-7-R-FW | 1" | 4' | 6.5" | 155 | 1 |
| 2-4-7-R-FW | 2" | 4' | 6.5" | 95 | 1 |
| 4-4-7-R-FW | 4" | 4' | 6.5" | 48 | 1 |
| 8-4-7-R-FW | 8" | 4' | 6.5" | 24 | 1 |
| 1-8-7-R-FW | 1" | 8' | 6.5" | 77 | 1 |
| 2-8-7-R-FW | 2" | 8' | 6.5" | 48 | 1 |
| 4-8-7-R-FW | 4" | 8' | 6.5" | 25 | 1 |
| 8-8-7-R-FW | 8" | 8' | 6.5" | 13 | 1 |
This fabric has a higher density of optical fibers built into the fabric. This allows for a greater amount of light to be emitted from the fabric.
| Part # - SKU | Width B (Inch) | Length A (Feet) | Extension C (Inch) | Luminance (cd/m²) | Light Injection |
|---|---|---|---|---|---|
| 8-3.7-15-R-FW | 8" | 3'7" | 15" | 175 | 2 |
| 1-4-15-R-FW | 1" | 4' | 6.5" | 310 | 1 |
| 2-4-15-R-FW | 2" | 4' | 6.5" | 190 | 1 |
| 4-4-15-R-FW | 4" | 4' | 6.5" | 95 | 1 |
| 1-8-15-R-FW | 1" | 8' | 6.5" | 155 | 1 |
| 2-8-15-R-FW | 2" | 8' | 6.5" | 95 | 1 |
| 4-8-15-R-FW | 4" | 8' | 6.5" | 50 | 1 |

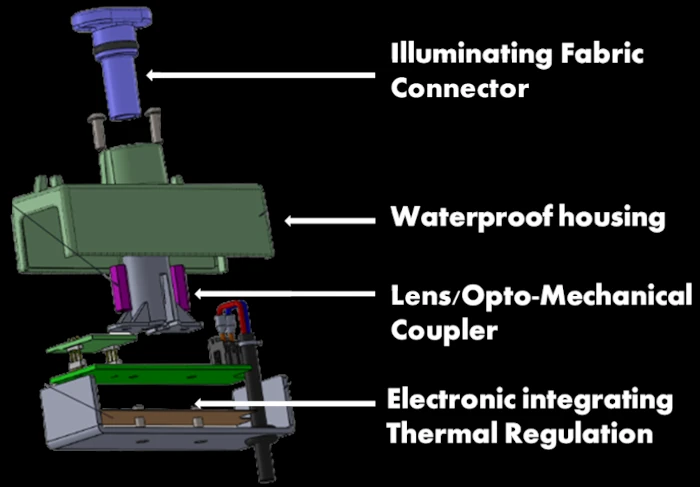

| Part # - SKU | Description | Volt (DC) | Power (W) | RGB | Dimmable | Injection outputs | Controllers compatible | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| I-12-10-2-W2700-N | Bimini Top injector | 12-24 | 15 | NO | YES | 2 | NO | 250x90x40mm (9.8"x3.5"x1.6") |
| I-5-2.5-1-W3000-N | Warm white Injector | 5-16 | 2.5 | NO | YES | 1 | NO | 90x40x30mm (3.5"x1.6"x1.2") |
| I-5-2.5-1-RGB-B | RGB injector | 5-16 | 2.5 | YES | YES | 1 | Bluetooth - Phone Application (IOS & Android) |
90x40x30mm (3.5"x1.6"x1.2") |
CONNECT IT TO YOUR CONTROLLER.
KANVASLIGHT LIGHT INJECTORS ARE COMPATIBLE WITH MANY CONTROLLERS FOLLOWING DIFFERENT PROTOCOLES.
YOU NEED A CONTROLLER, ASK US!

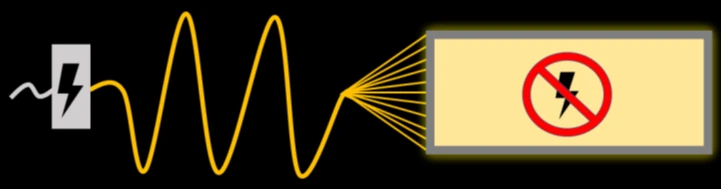

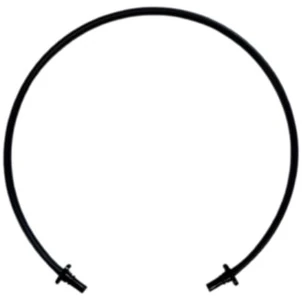

| Part # - SKU | Length (Feet) | External Diam (mm) | Internal Diam (mm) | Material | Light Loss percentage |
|---|---|---|---|---|---|
| OW-3-11-9 | 3' | 11 | 9 | PMMA - Optical Fibers Diam 1mm | 20 to 30% |
| OW-6-11-9 | 6' | 11 | 9 | PMMA - Optical Fibers Diam 1mm | 20 to 30% |
| OW-10-11-9 | 10' | 11 | 9 | PMMA - Optical Fibers Diam 1mm | 20 to 30% |
| OW-15-11-9 | 15' | 11 | 9 | PMMA - Optical Fibers Diam 1mm | 20 to 30% |
